Bali Cellular Shades: Blackout

Specifications

• Width 10" - 144"
• Height 12" - 144"
• Maximum square feet 84'
• Minimum inside-mount depth 1 1/16"
• Minimum flush-mount depth 2 1/4"
• Minimum outside-mount space 1 1/16"
• Headrail depth and height 2 1/16" x 7/8"

Please note the following exceptions to the above specifications

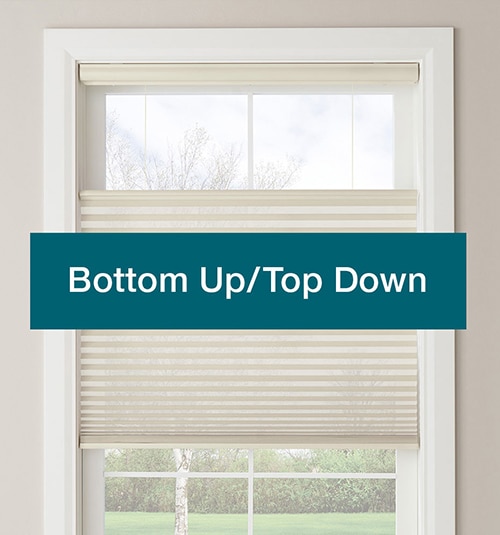

Bottom Up/Top Down Lift

• Width 10" - 96"
• Height 9" - 96"
• Maximum square feet 84'
• Minimum inside-mount depth 1 1/16"
• Minimum flush-mount depth 2 1/4"
• Minimum outside-mount space 1 1/16"
• Headrail depth and height 1 9/16" x 11/16"

Continuous Cord Lift

• Width 19" - 144"
• Height 9" - 144"
• Maximum square feet 118'
• Minimum inside-mount depth 5/8"
• Minimum flush-mount depth 2 5/8"
• Headrail depth and height 2 3/8" x 1 9/16"

Cordless Bottom Up/Top Down Lift

• Width 15" - 96"
• Height 9" - 86"
• Minimum inside-mount depth 1/2"
• Minimum flush-mount depth 2 1/8"
• Headrail depth and height 2" x 1 1/2"

Cordless Lift

• Width 9" - 120"
• Height 9" - 86"
• Minimum inside-mount depth 1/2"
• Minimum flush-mount depth 2 1/8"
• Headrail depth and height 2" x 1 1/2"

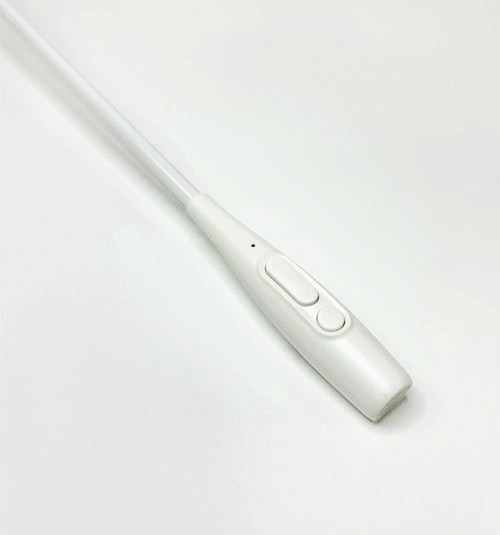

Motorized Wand Lift

• Width 23" - 144"
• Height 18" - 144"
• Minimum inside-mount depth 5/8"
• Minimum flush-mount depth 3 3/8"
• Minimum outside-mount space 1 1/4"
• Headrail depth and height 2 3/8" x 1 9/16"

Z-Wave Motorization Lift

• Width 20" - 144"
• Height 9" - 144"
• Minimum inside-mount depth 3/4"
• Minimum flush-mount depth 3 1/4"
• Minimum outside-mount space 1 1/2"
• Headrail depth and height 2" x 1 1/2"
